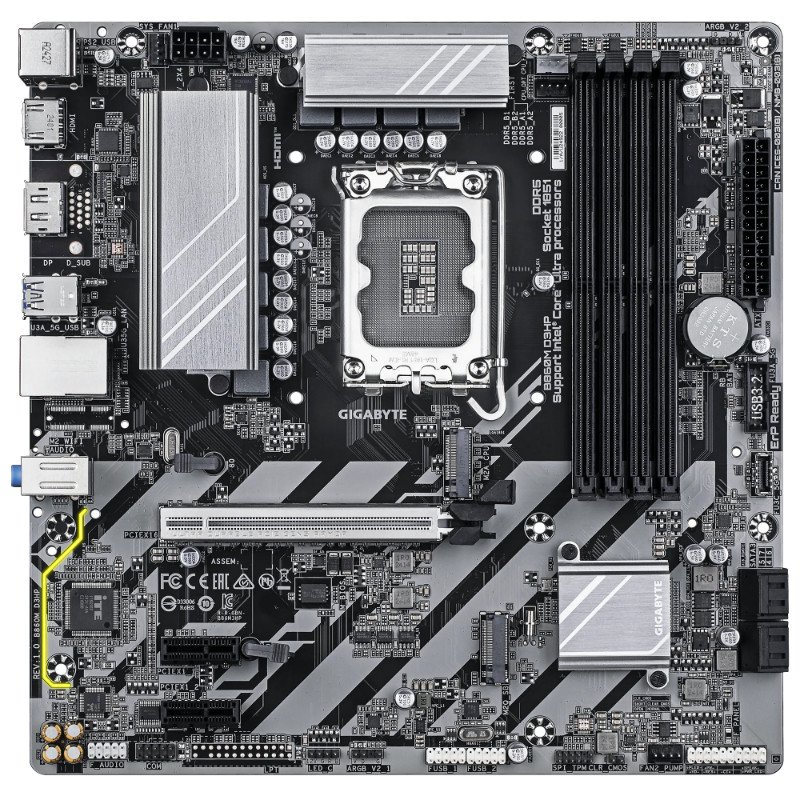

Especificaciones:. . Procesador. LGA1851 socket Support for Intel® Core'' Ultra Processors. L3 cache varies with CPU. (Please refer ''CPU Support List'' for more information.). Chipset. Intel® B860 Express Chipset. MemoriaSupport for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory. Dual channel memory architecture. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode). Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Support for Extreme Memory Profile (XMP) memory modules. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to ''Memory Support List'' on GIGABYTE's website for more information.). Gráfica Integrada. Integrated Graphics Processor-Intel® HD Graphics support:. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. . * Support for HDMI 2.1 version and HDCP 2.3.. . - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. . * Support for DisplayPort 2.1 version.. . (Graphics specifications may vary depending on CPU support.). Audio. Realtek® Audio CODEC. High Definition Audio. 2/4/5.1/7.1-channel. . * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.. . Support for S/PDIF Out. LAN. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps). Zócalos de Expansión. CPU:. - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16. * The PCIEX16 slot can only support a graphics card or an NVMe SSD.. Chipset:. - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1. . Interfaz de almacenamiento. CPU:. - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). Chipset:. - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB). - 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices. USB. Chipset:. - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header. - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). - 3 x USB 2.0/1.1 ports on the back panel. Chipset+USB 2.0 Hub:. - 4 x USB 2.0/1.1 ports available through the internal USB headers. Conectores Internos E/S1 x 24-pin ATX main power connector. 1 x 8-pin ATX 12V power connector. 1 x CPU fan header. 1 x CPU fan/water cooling pump header. 1 x system fan header. 1 x system fan/water cooling pump header. 2 x addressable RGB Gen2 LED strip headers. 1 x RGB LED strip header. 2 x M.2 Socket 3 connectors. 4 x SATA 6Gb/s connectors. 1 x front panel header. 1 x front panel audio header. 1 x USB Type-C® header, with USB 3.2 Gen 1 support. 1 x USB 3.2 Gen 1 header. 2 x USB 2.0/1.1 headers. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only). 1 x serial port header. 1 x Clear CMOS jumper. Panel E/S Trasero. 3 x USB 2.0/1.1 ports. 1 x PS/2 keyboard/mouse port. 1 x DisplayPort*. 1 x HDMI port*. 3 x USB 3.2 Gen 1 ports. 1 x RJ-45 port. 3 x audio jacks. Controlador E/S. iTE® I/O Controller Chip. Monitorización Hardware. Voltage detection. Temperature detection. Fan speed detection. Water cooling flow rate detection. Fan fail warning. Fan speed control. . * Whether the fan speed control function is supported will depend on the fan you install.. BIOS. 1 x 256 Mbit flash. Use of licensed AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Otras Características. Support for GIGABYTE Control Center (GCC). . * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.. . Support for Q-Flash. Support for Q-Flash Plus. Bundled Software. Norton® Internet Security (OEM version). LAN bandwidth management software. Sistema Operativo. Support for Windows 11 64-bit. Support for Windows 10 64-bit. Formato. Micro ATX Form Factor; 24.4cm x 24.4cm
